WindShaper

When wind goes digital

Limitless possibilities

We aim to create new innovation opportunities for researchers.

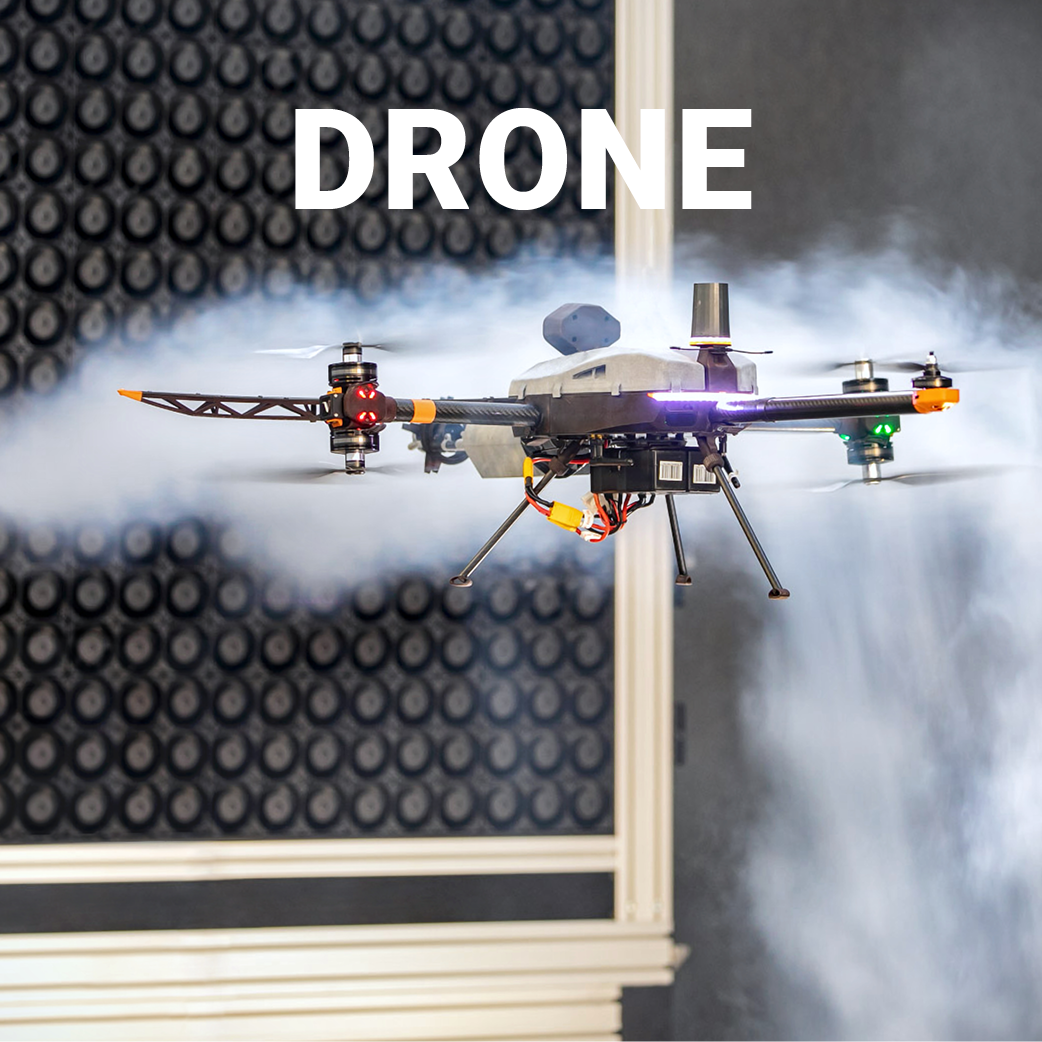

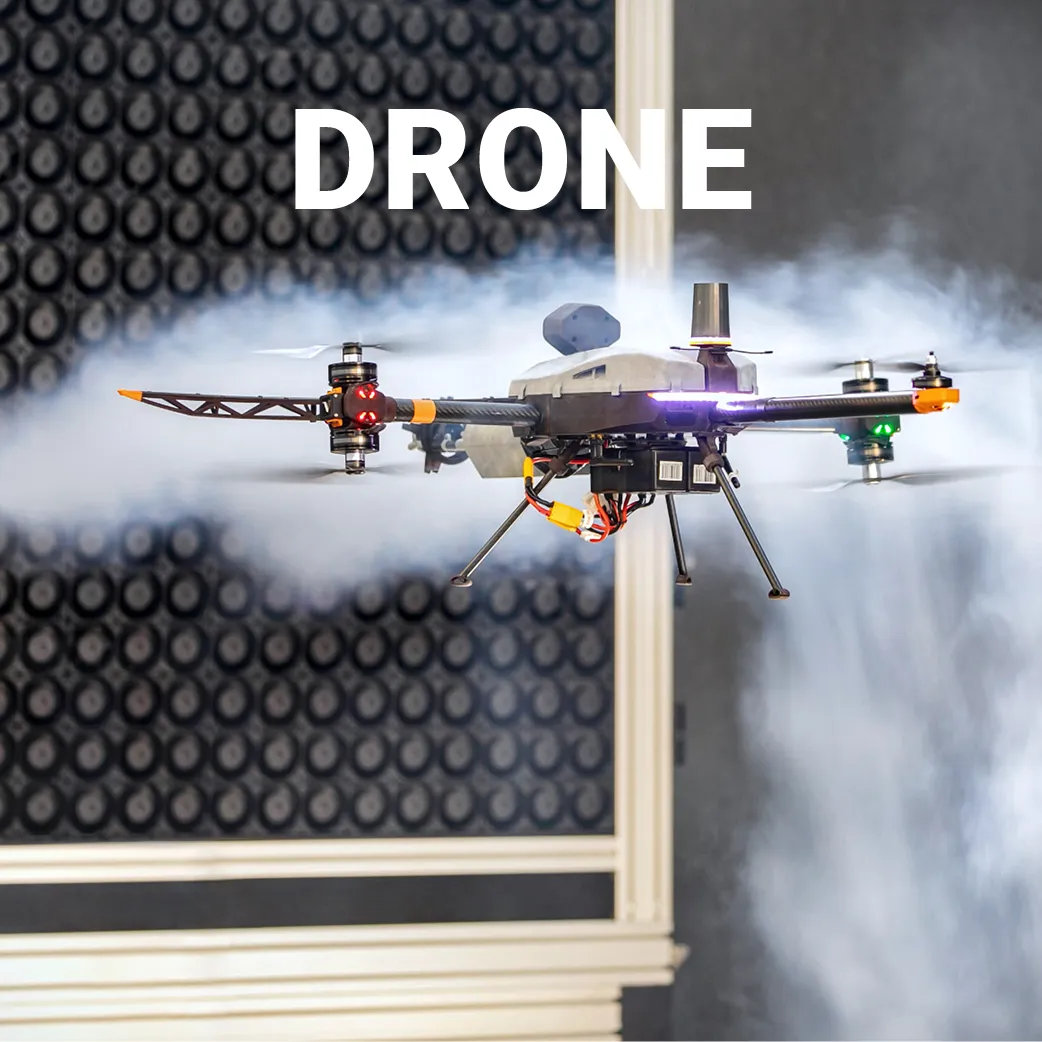

Drone

Testing drones in free flight.

Testing stability in strong wind, gusts or turbulence.

Investigating in-flight failure response.

One design, endless configurations.

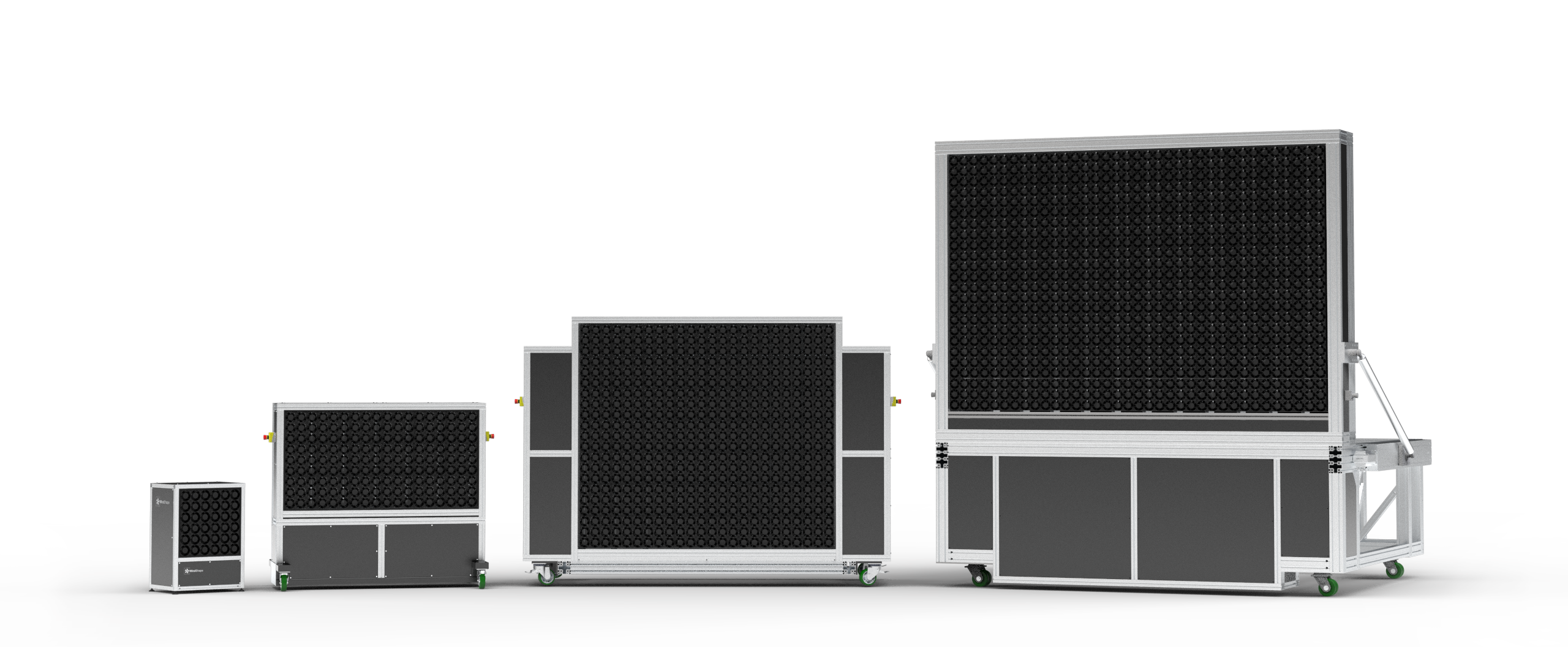

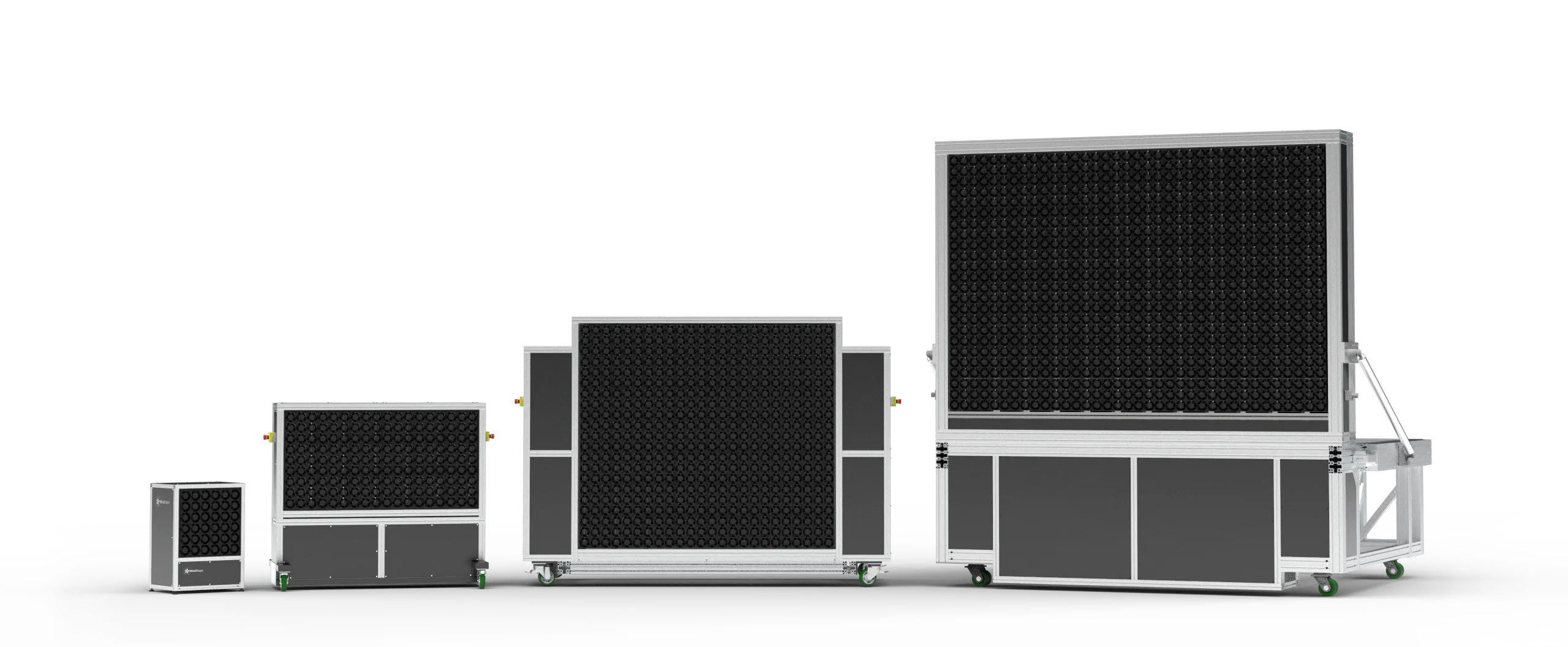

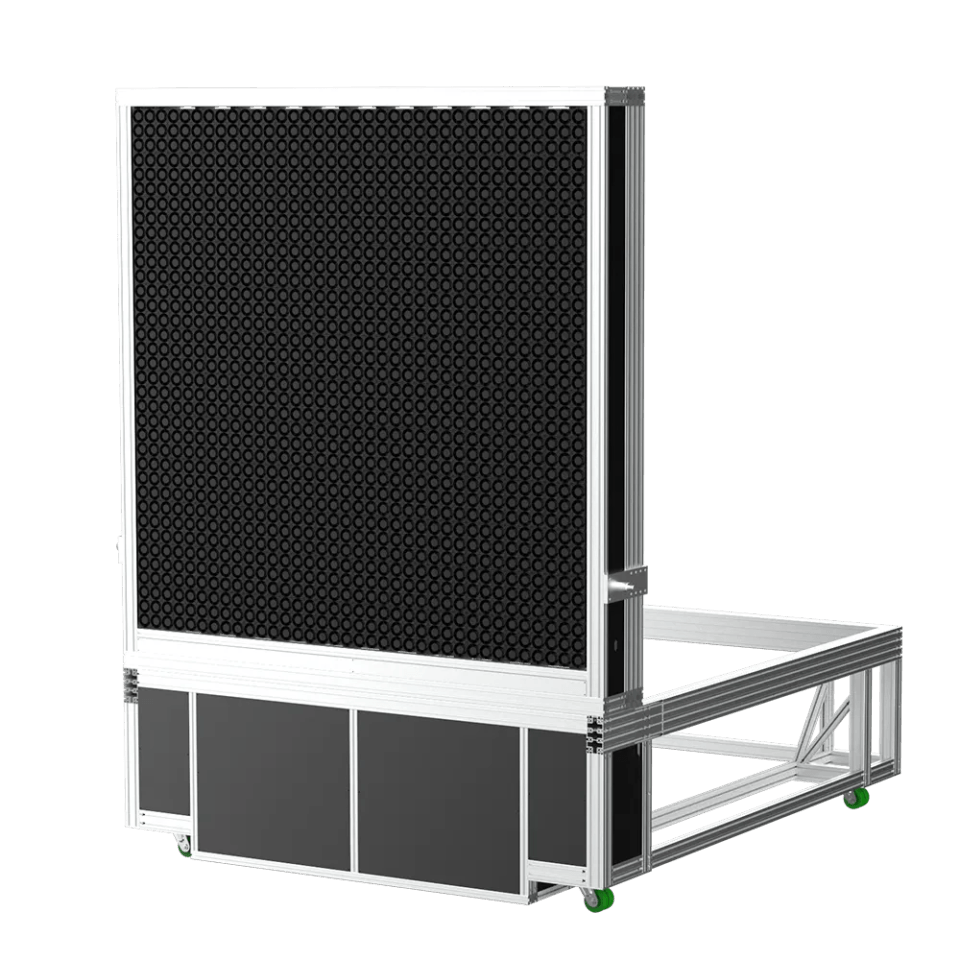

The WindShaper is a modular wind generator that can be configured to meet various research needs. From the tiny and agile table-top WindShaper to large-scale research facilites.

WindShaper 3x3

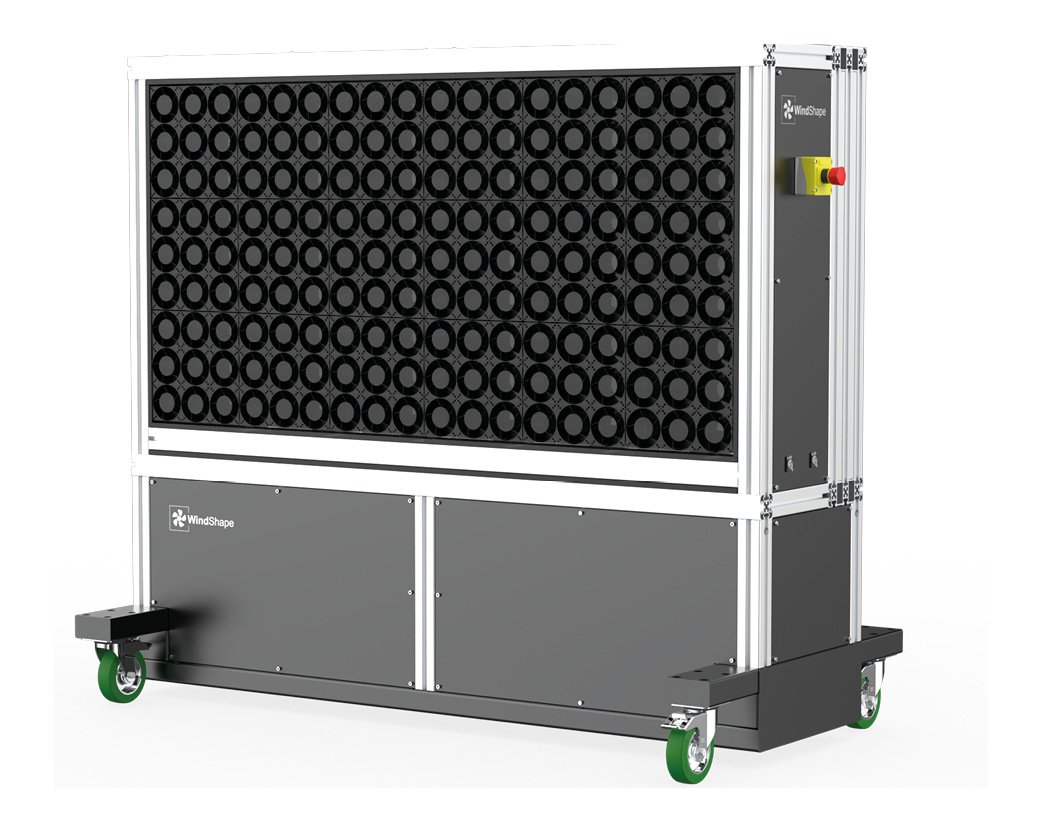

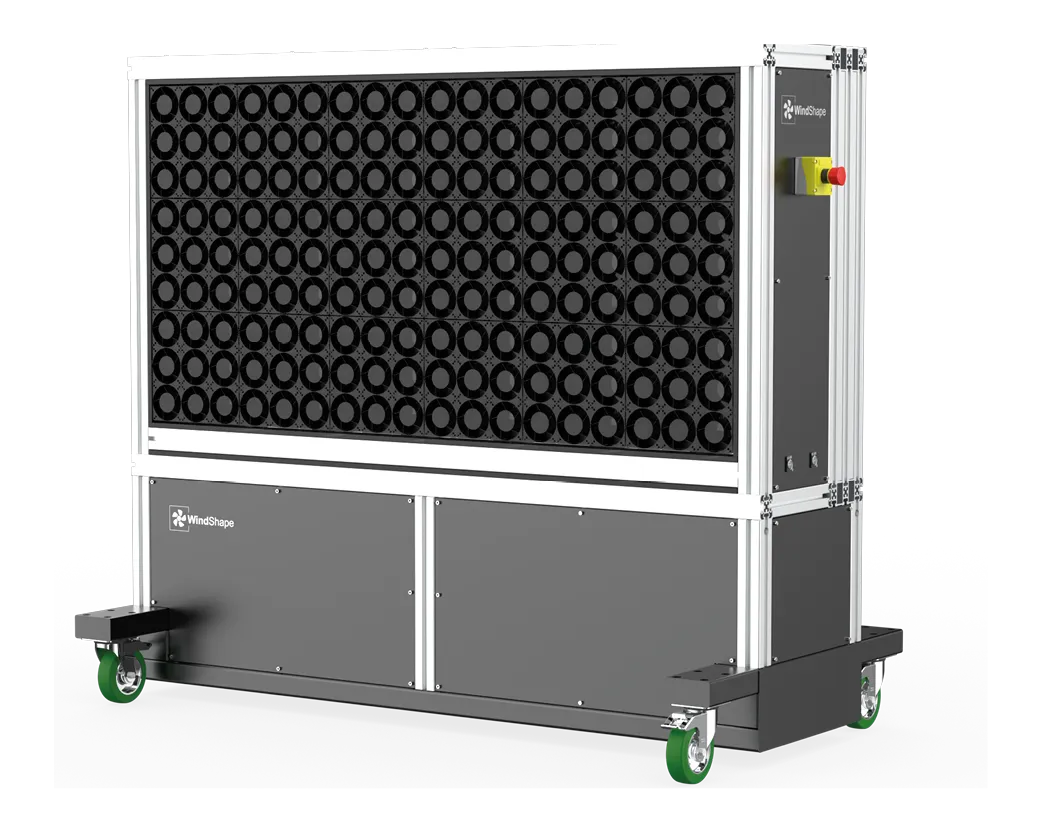

WindShaper 6x3

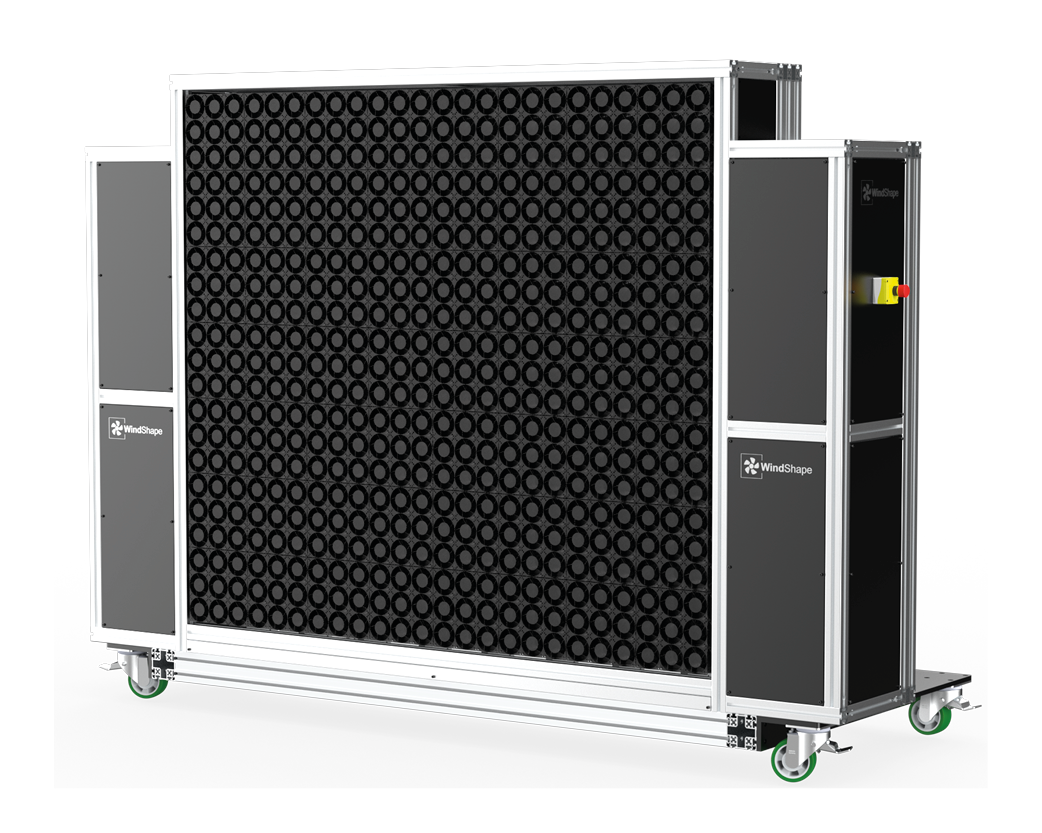

WindShaper 8x8

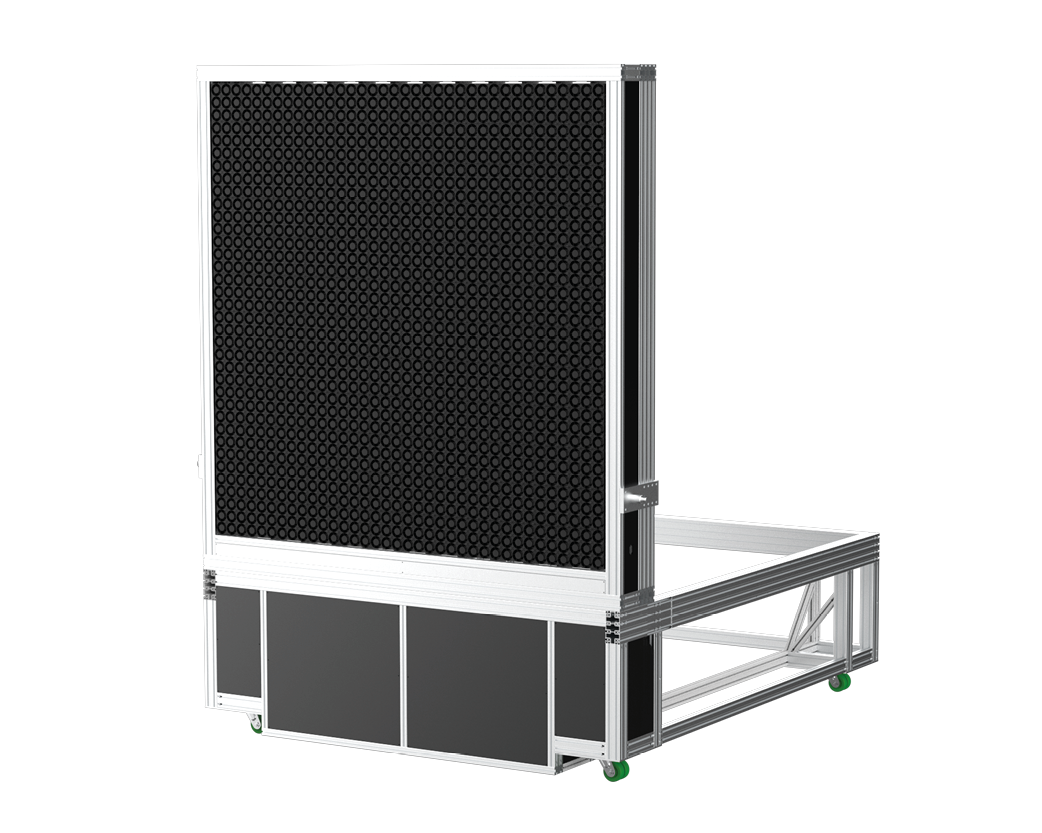

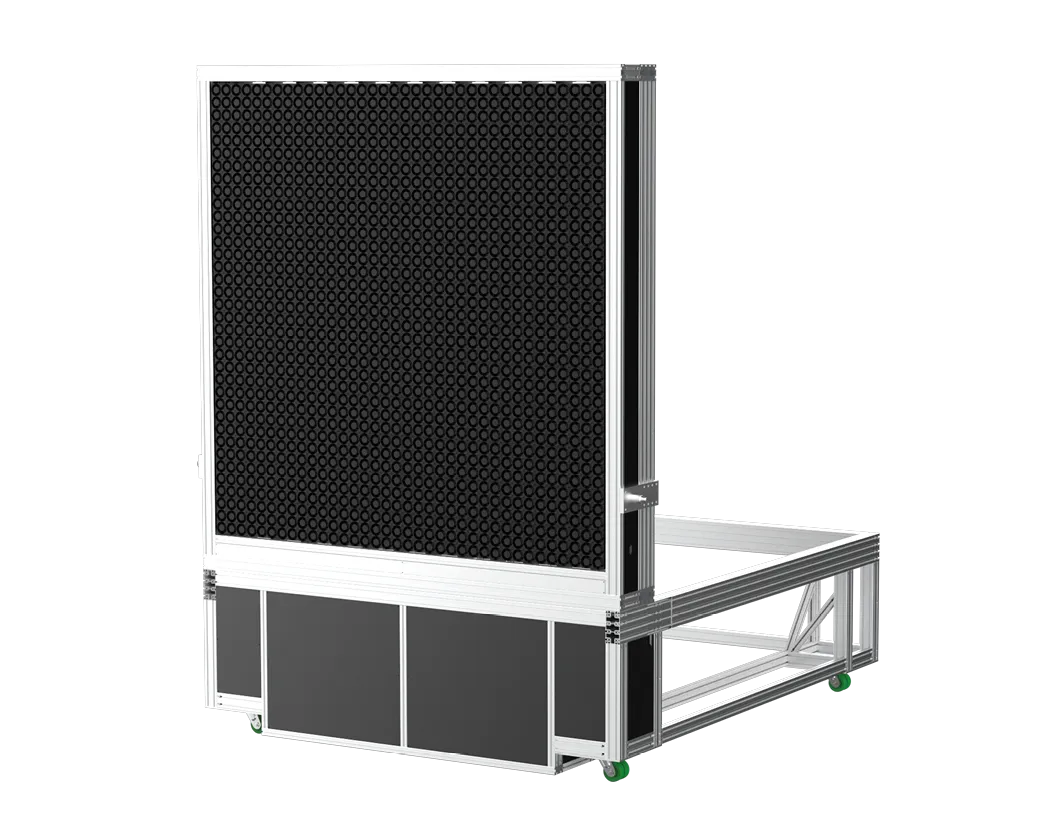

WindShaper 12x12

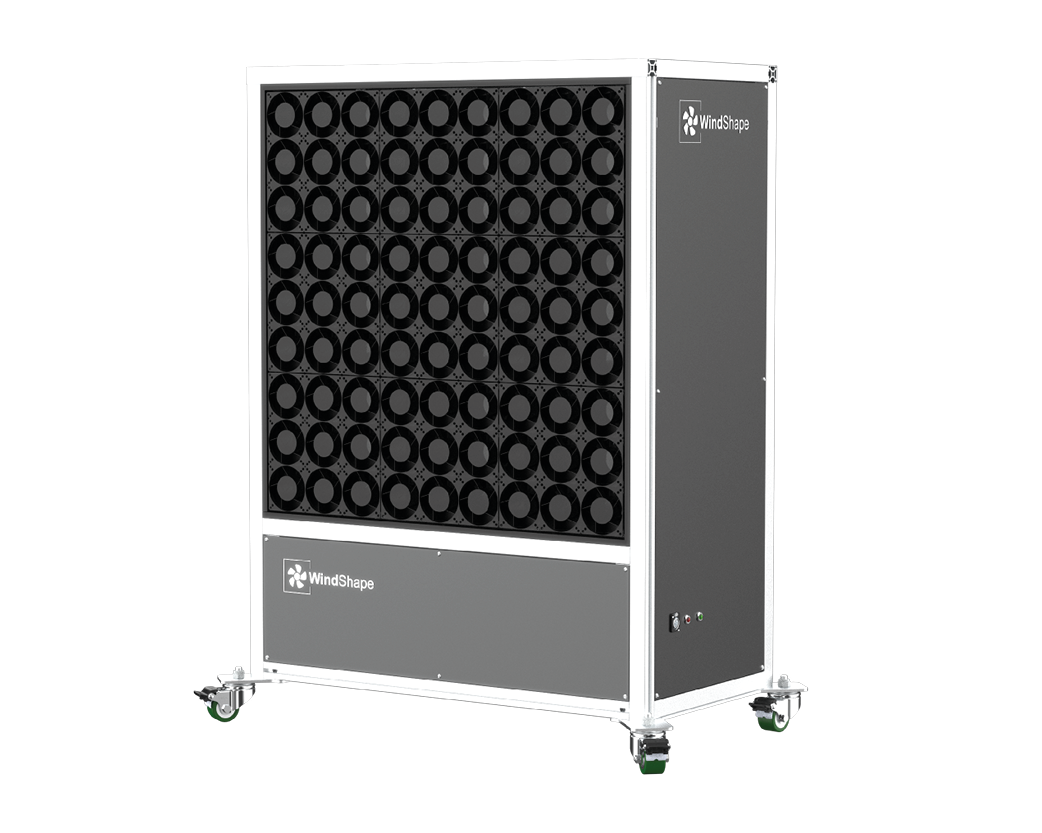

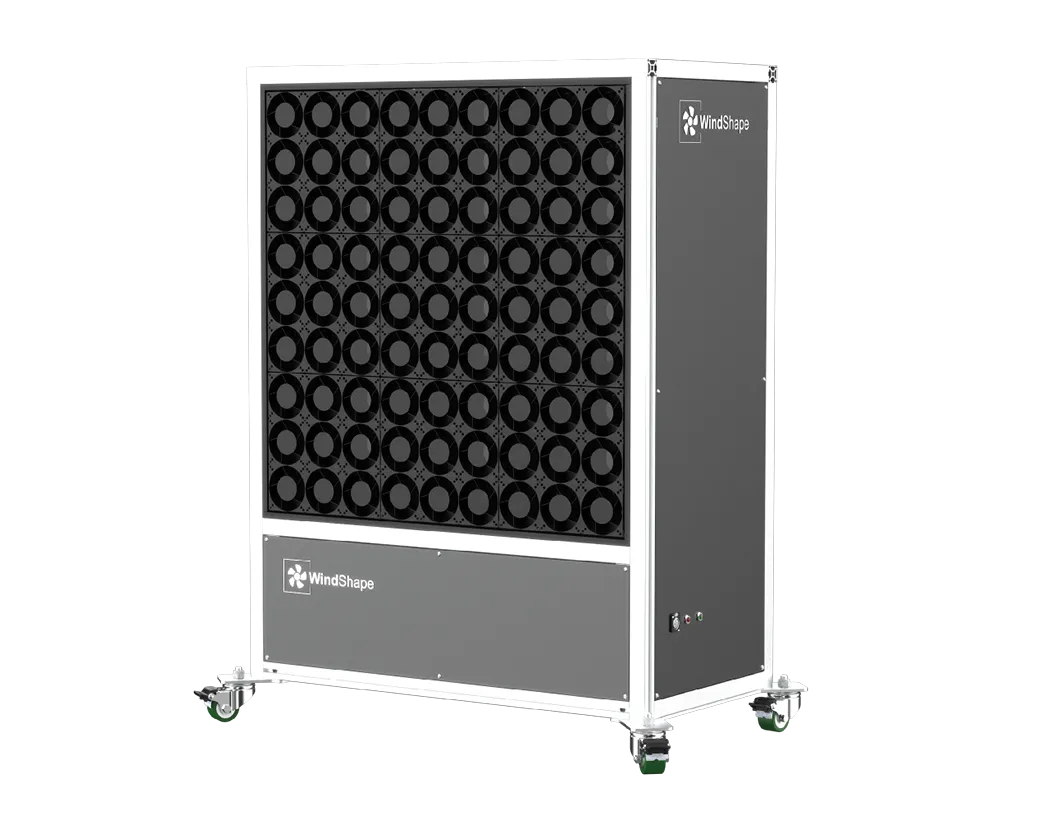

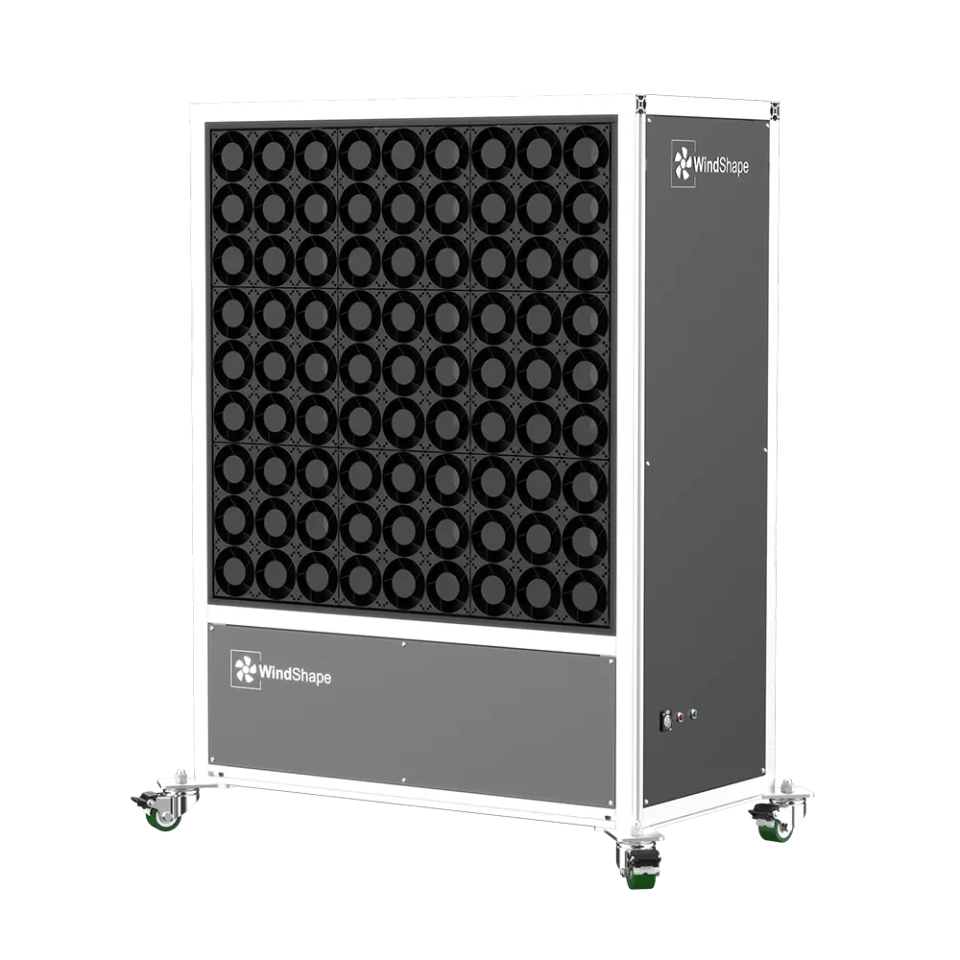

WindShaper 3x3

0.75m x 0.75m test section with 81 wind pixels

Portable and mobile

Small lab: propulsion unit characterization, educational projects, etc.

Fan module

The WindShaper is composed of fan modules that can be combined to create a wind wall of any size and shape. Selecting the right modules for your application is the starting point.

Fan Module 0812 Series

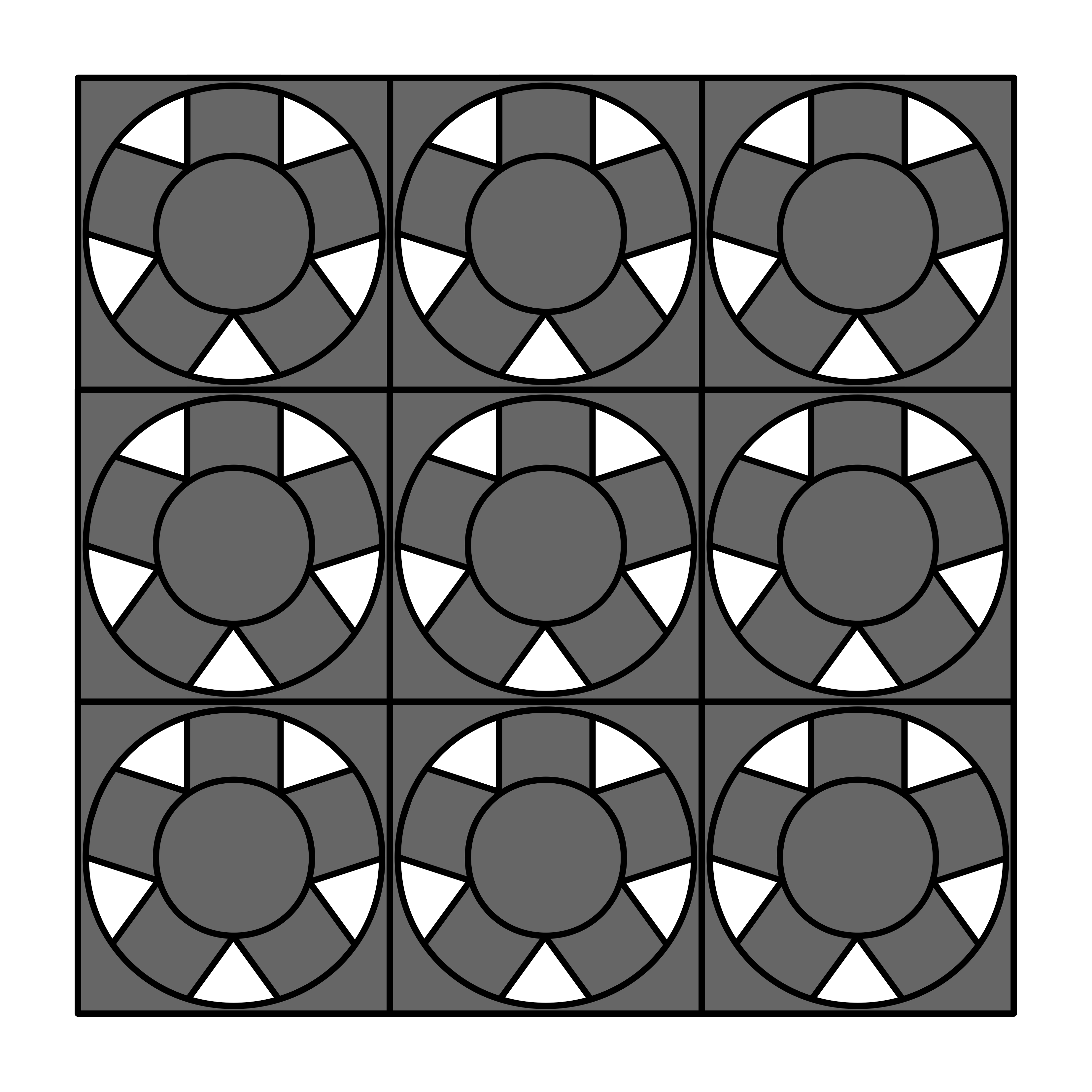

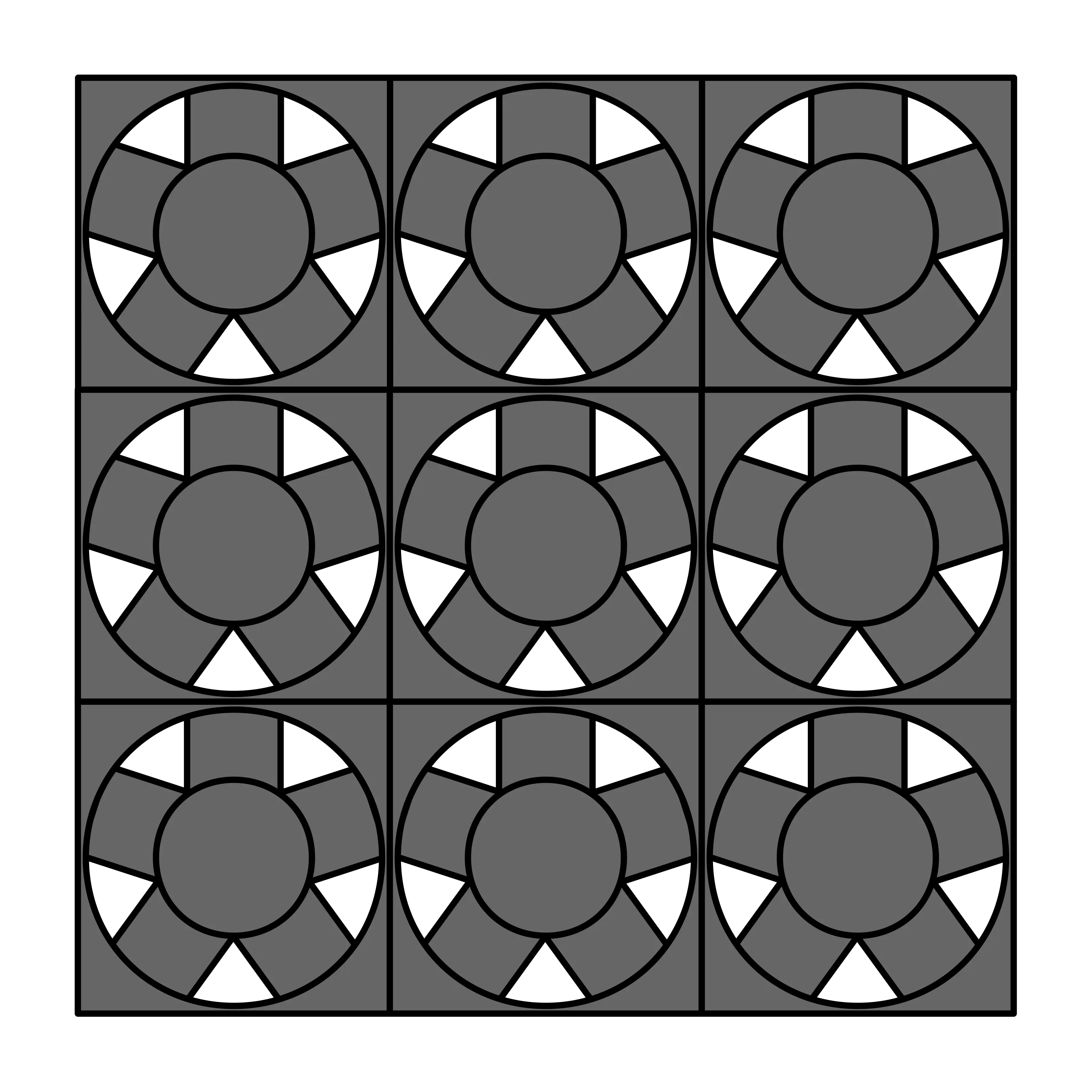

Fan Module 0816 Series

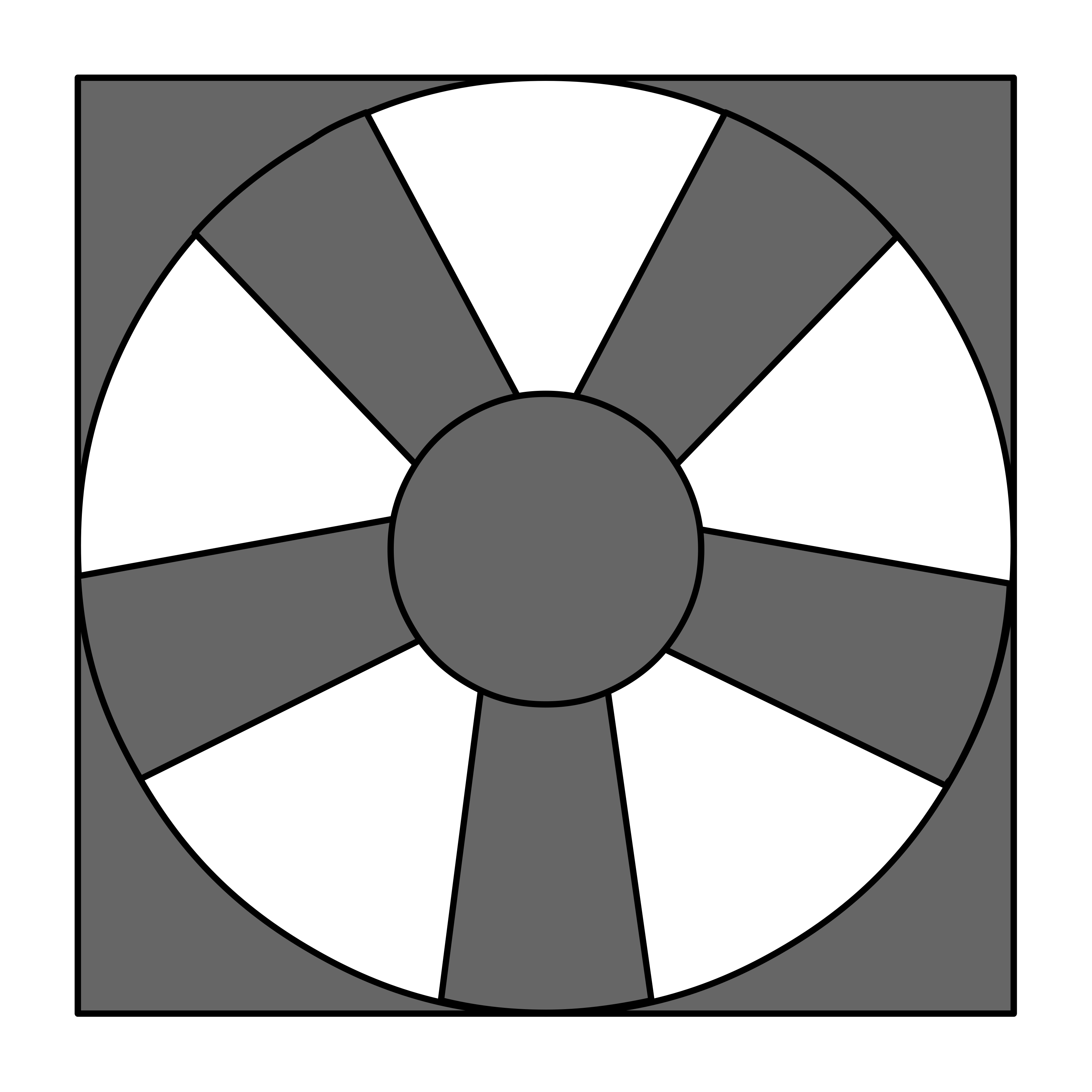

Fan Module 2420 Series

Fan Module 2425 Series

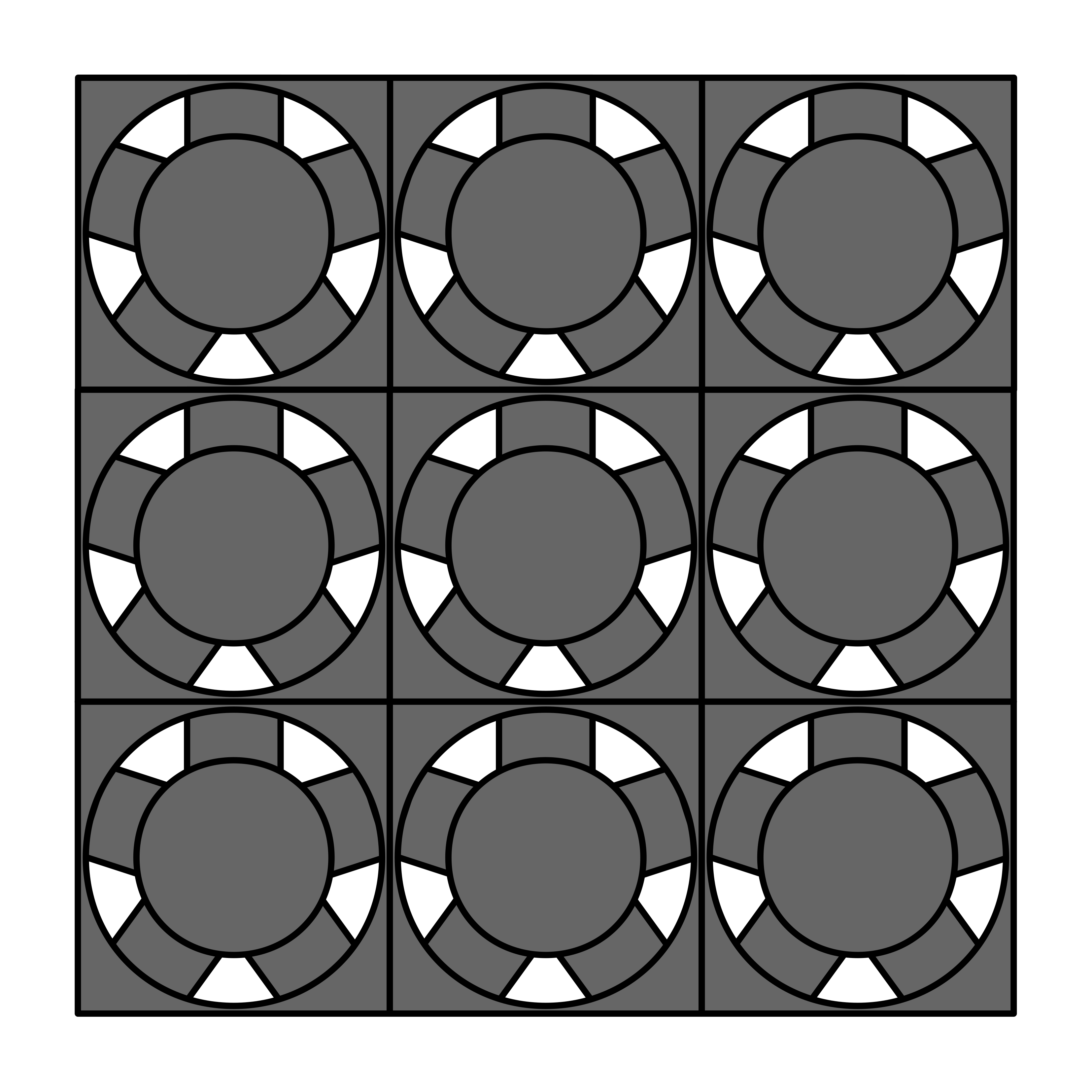

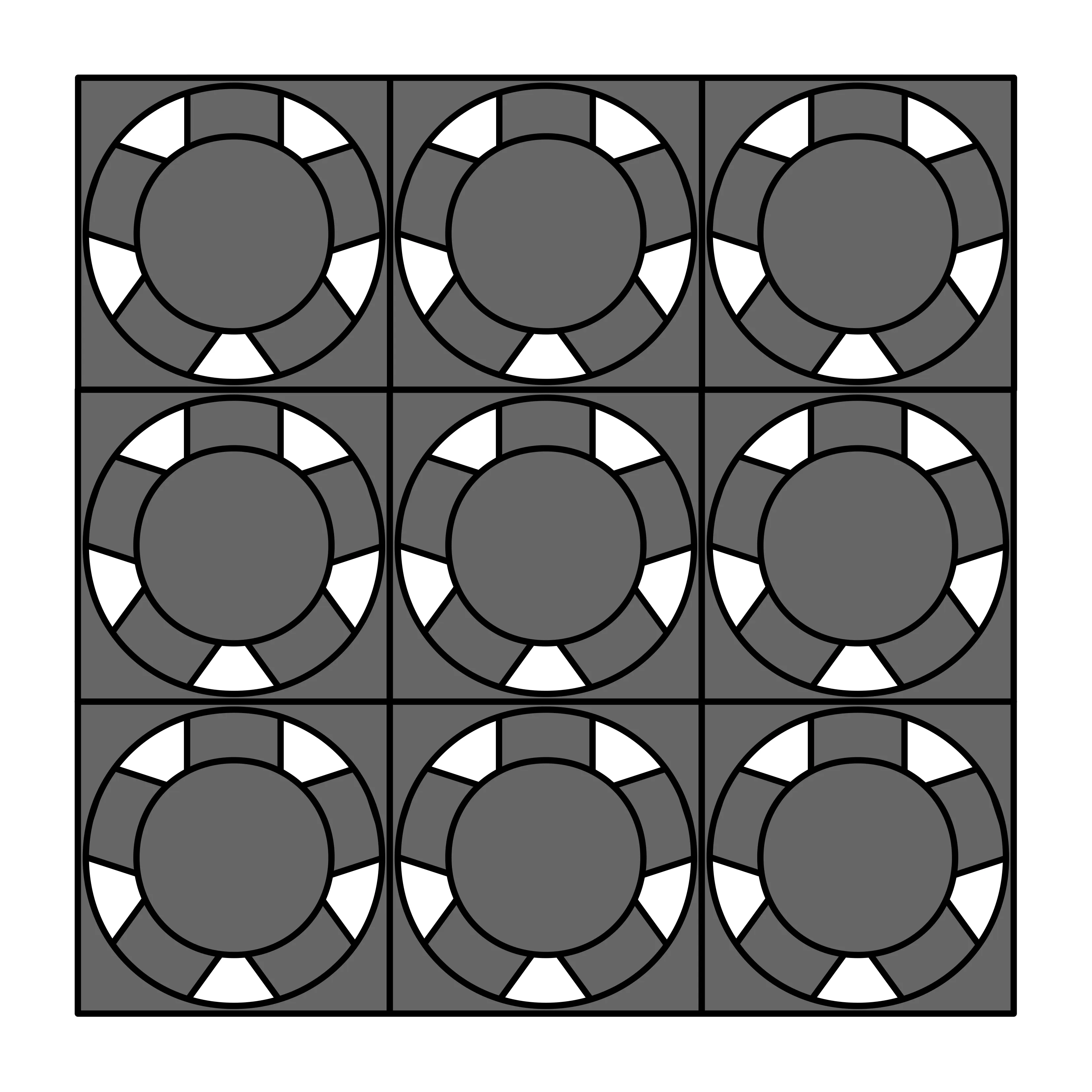

Fan Module 0812 Series

80 mm wind-pixels / 156 wind-pixel per m² / 9 wind-pixel per module

Wind speed up to 12m/s

0.8kW per module

Discover optional features

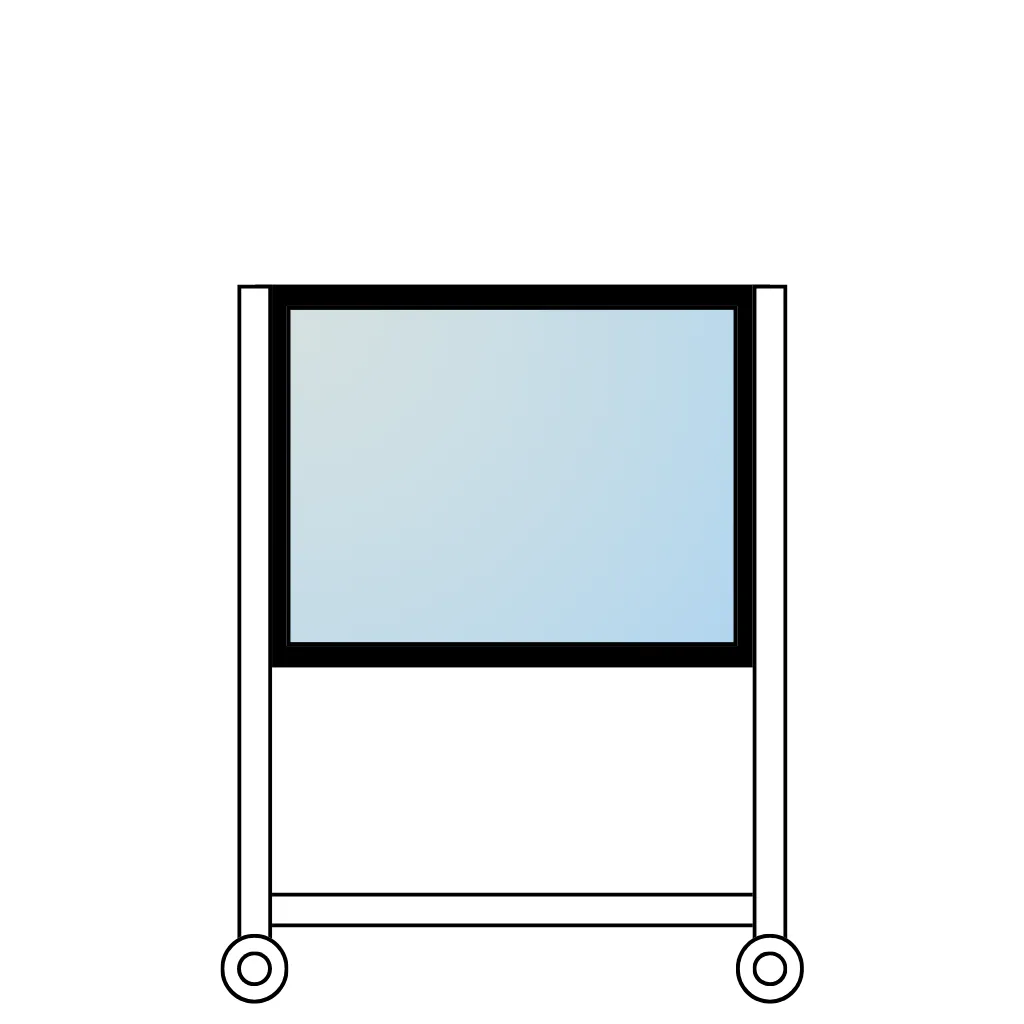

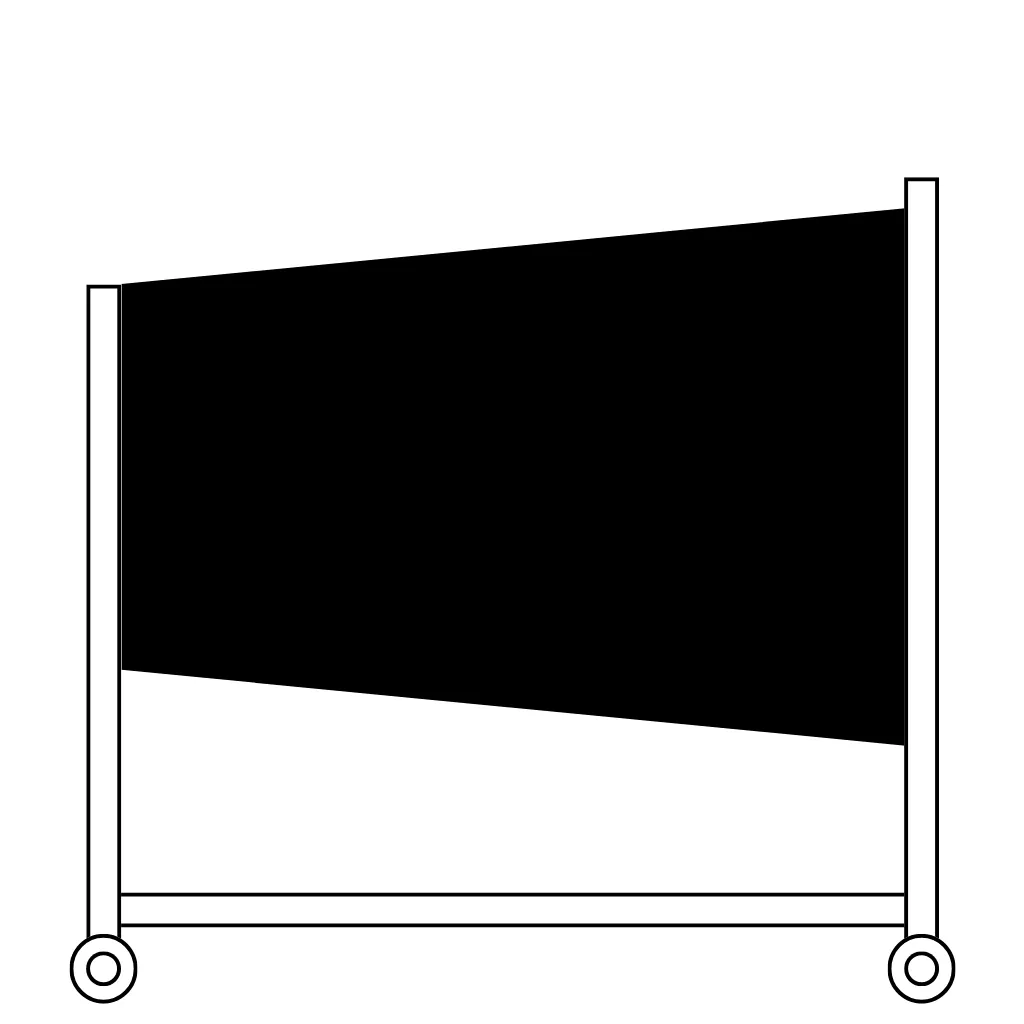

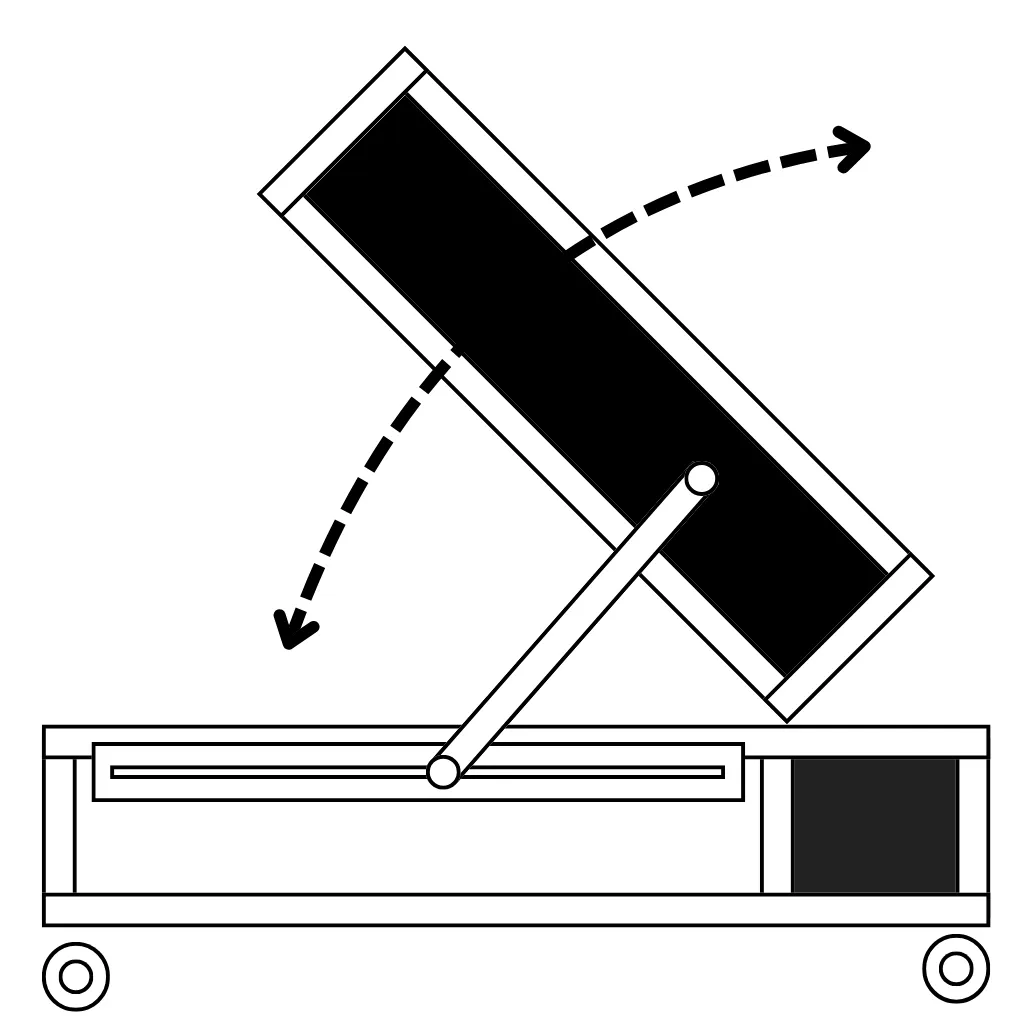

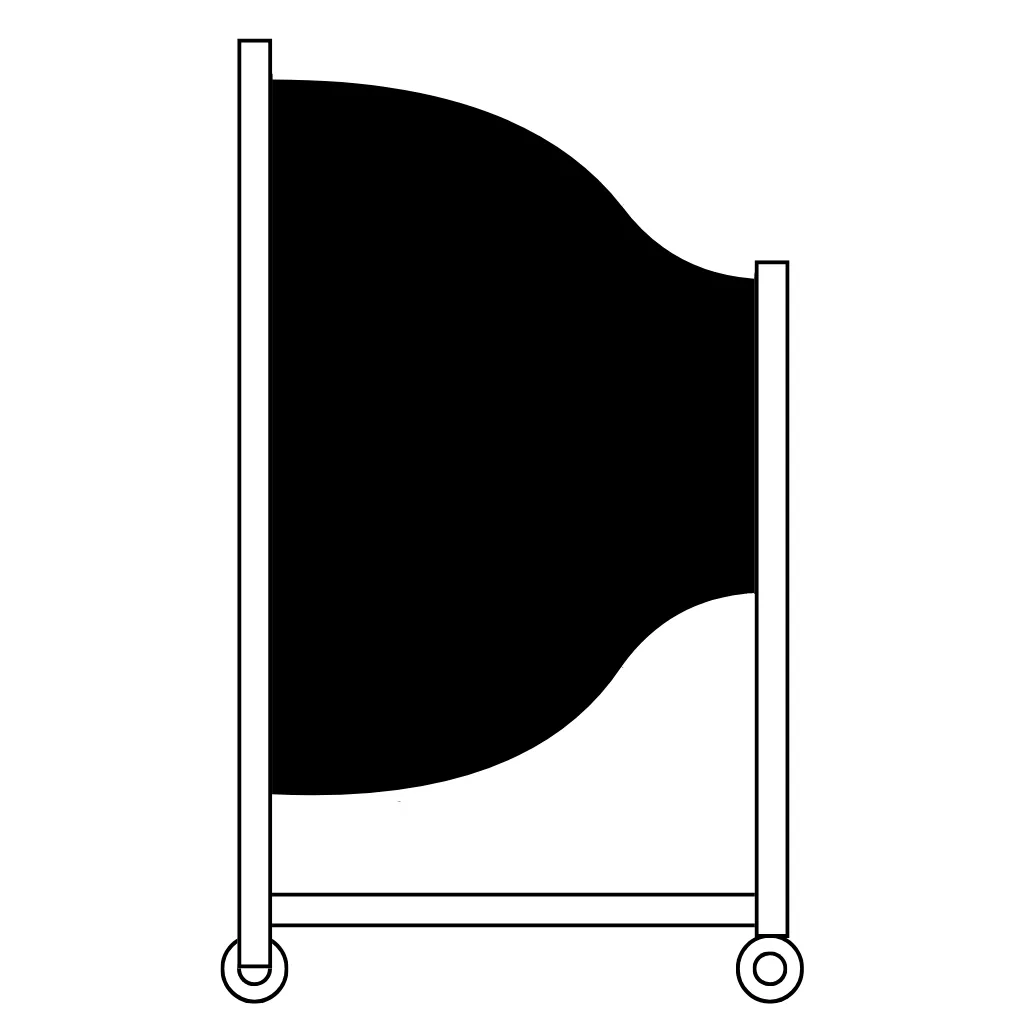

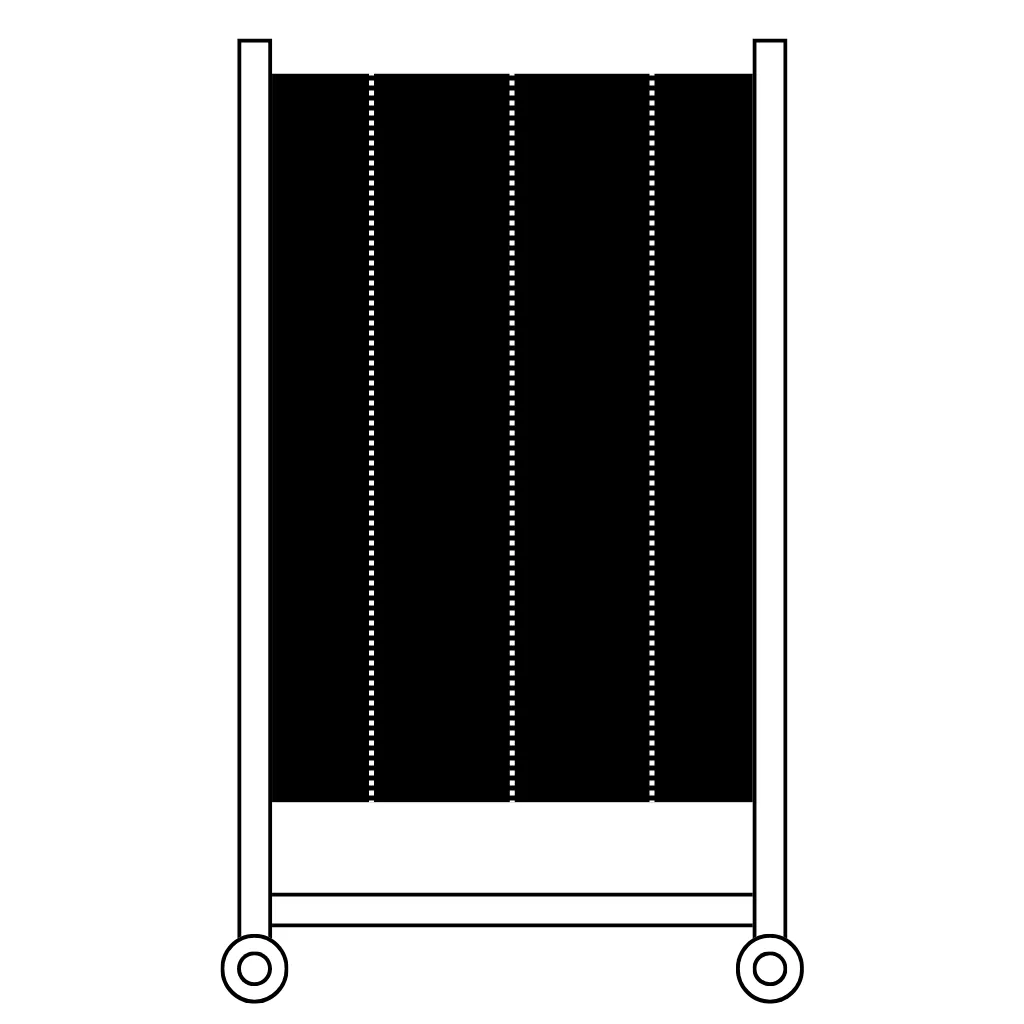

Add optional features to meet your project requirements in terms of wind speed, turbulence, flow quality, efficiency, angle of incidence, etc. Each optional module (except the tilting mechanism) is an independent system mounted on wheels. The modules can be attached to, and detached from the WindShaper within minutes.
