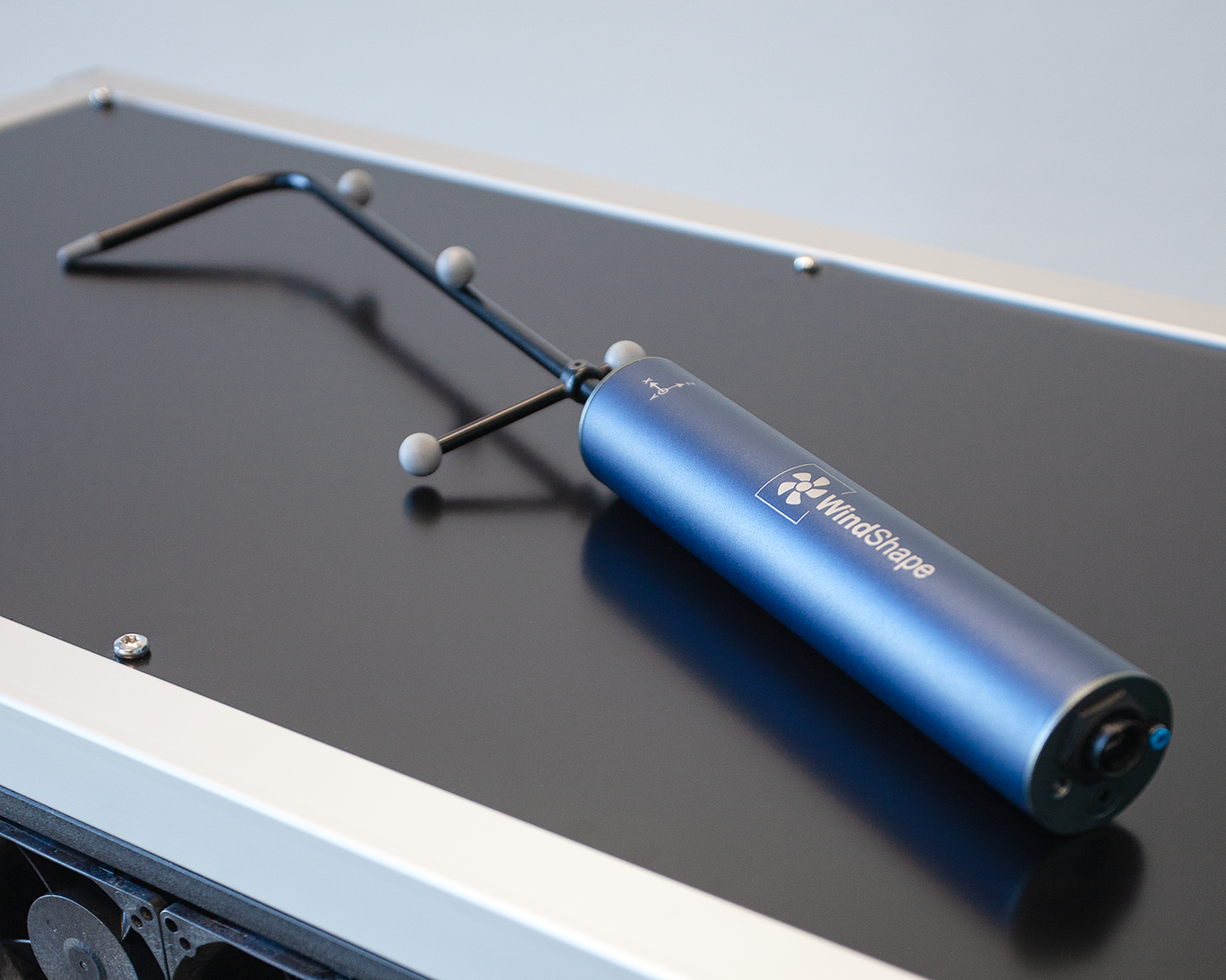

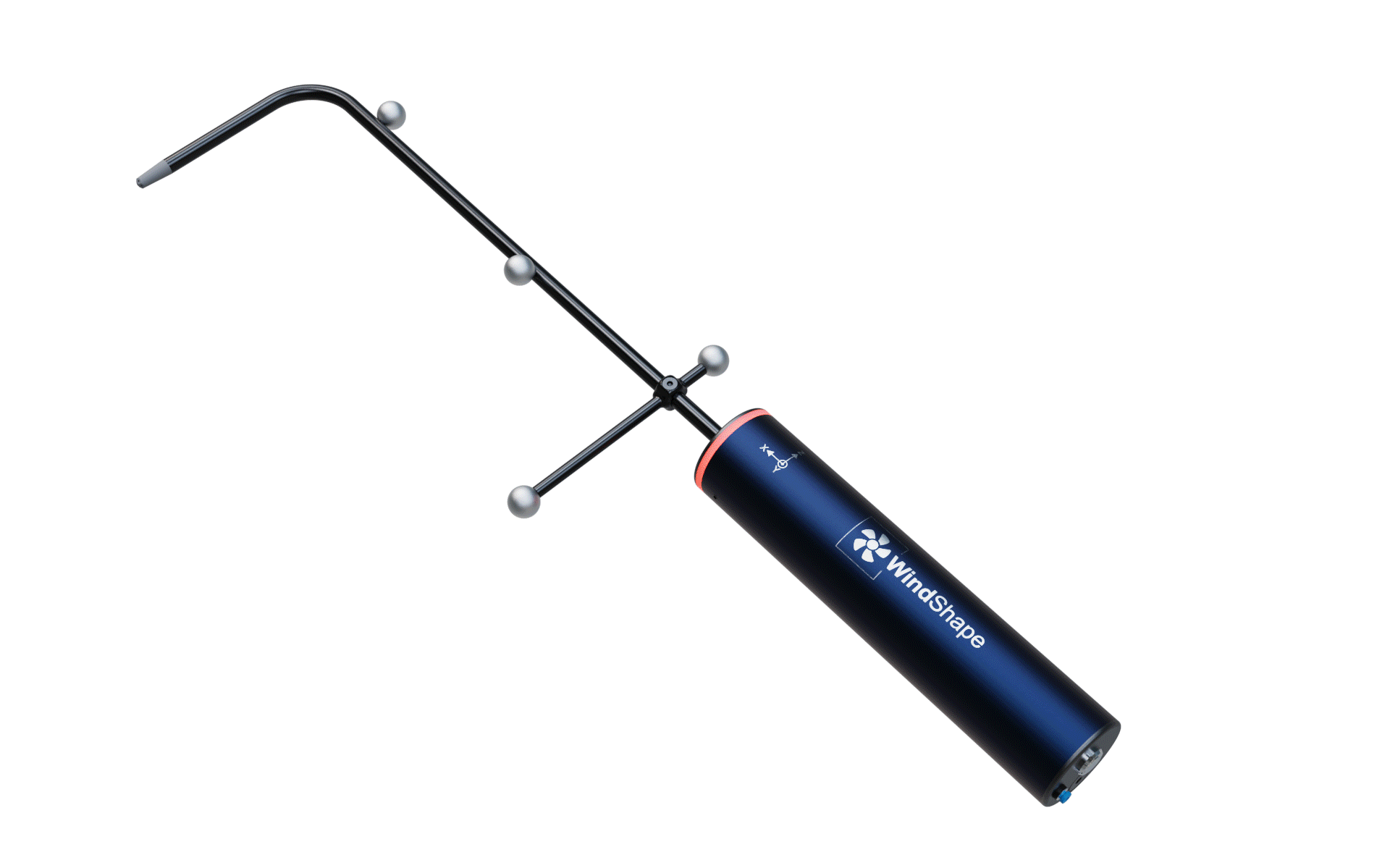

WindProbe
A new approach to measuring wind
Measuring made easy
Why using the WindProbe
Reliable and accurate tool for everyday lab measurements
Capture wind speed and direction at 200Hz
As easy as plug and play
Wind Speed and Direction

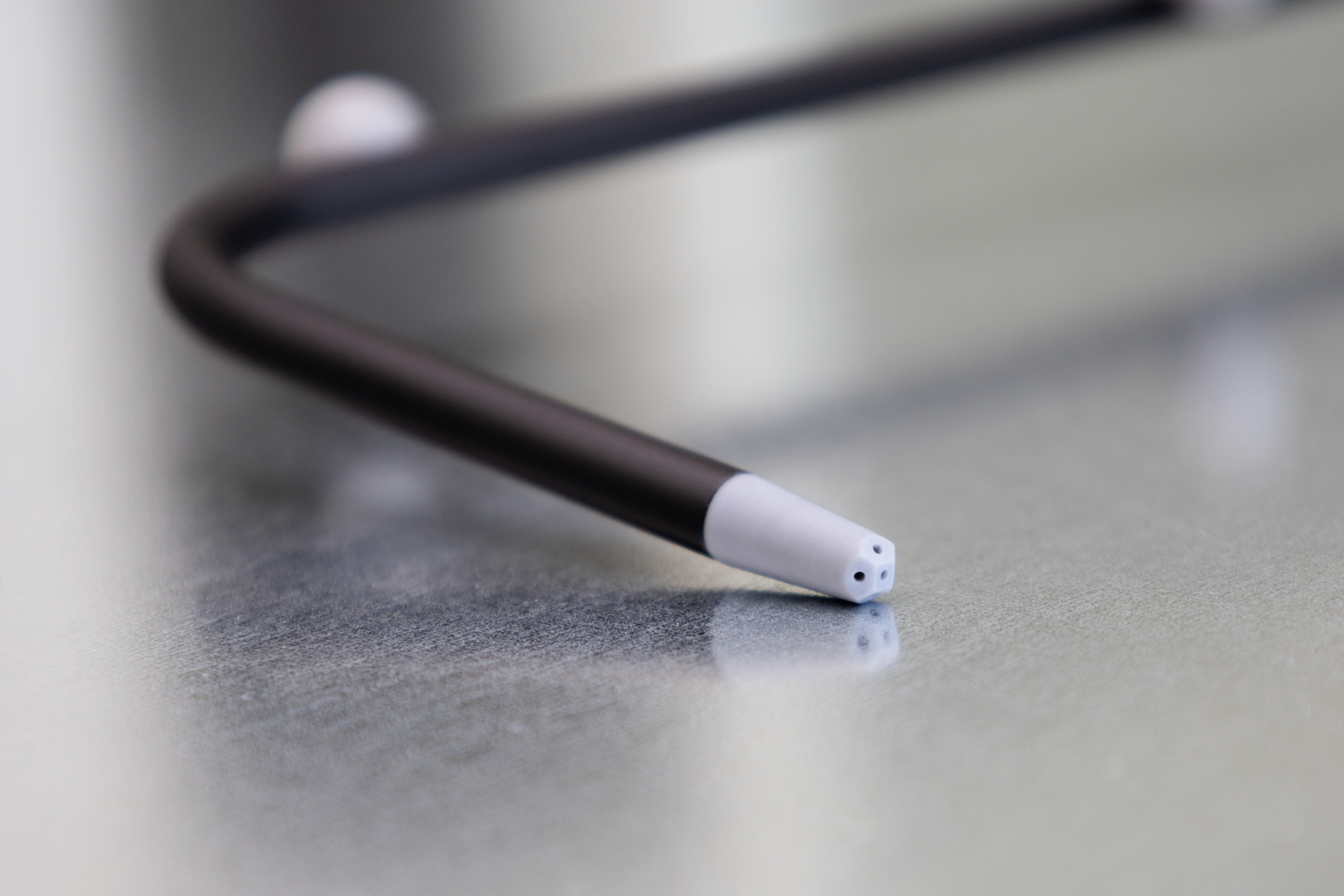

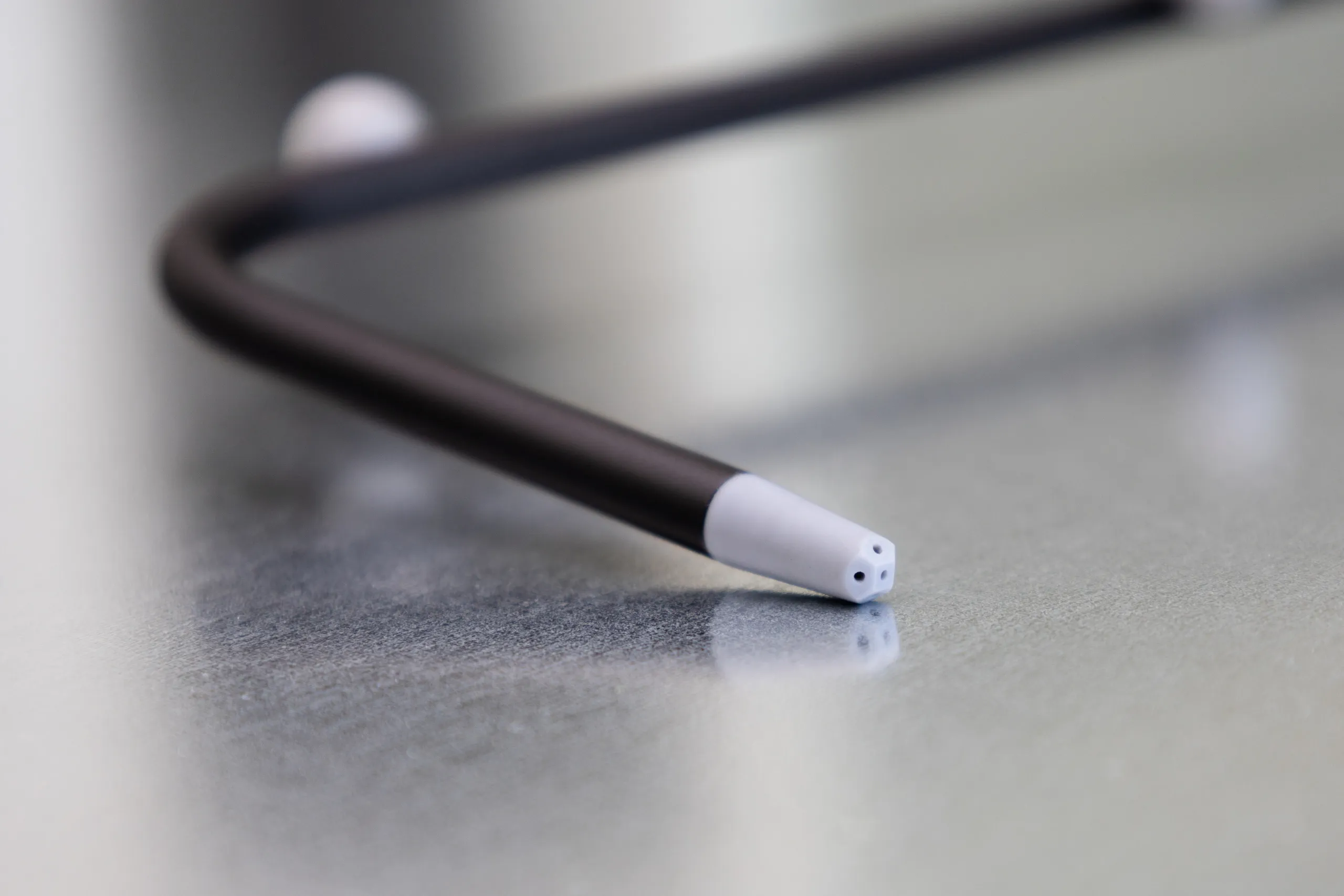

Digital 5-hole pressure probe
Wind is a complex thing the measure or acquire. Measuring its intensity isn't enough to fully understand an air flow. The WindProbe is a lab instrument that makes it possible to acquires the intensity of the wind and as well as its direction.
Specifications
Find the right WindProbe for you.
The WindProbe can be configured for various wind speed range. Check our specs to find the right WindProbe for your application.
| Specs | Units | WP5-20 | WP5-60 |
|---|---|---|---|
| Overall dimensions (L x W x H) | (mm) | 460 x 115 x 40 | 460 x 115 x 40 |
| Probe handle dimensions | (mm) | ⌀ 40 x 190 | ⌀ 40 x 190 |
| Weight | (g) | 275 | 275 |
| Tip geometry | pyramidal (5mm tip diameter) | pyramidal (5mm tip diameter) | |
| Acquisition frequency | (Hz) | 200 | 200 |
| Maximum flow velocity | (m/s) | 20 | 60 |
| Minimum recommended flow velocity | (m/s) | 1 | 3 |
| Acceptance cone angle | (°) | 40 | 40 |
| Flow velocity magnitude error * | (m/s) | ±0.2 | ±0.6 |
| Local flow angle error * | (°) | ±0.5 | ±0.5 |
* WindProbe effective accuracy is dependent on the flow velocity and local angle. For more information, please contact WindShape.
